Activated Carbon Grades
Quality Carbon make superiority
All
GAC RAC ECOSORB
GAC RAC AQUASORB
PAC RAC AQUASORB
GAC RAC ECO SORB
| Specification | 4 X 8 (4.75 MM X 2.36 MM) | Method | ||||
|---|---|---|---|---|---|---|
| +4 Mesh (+4.75 mm) | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2862 |
| -8 Mesh (-2.36 mm) | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2862 |
| Iodine Value (Minimum) | 900 Min. | 950 Min. | 1050 Min. | 1100 Min. | 1250 Min. | ASTM D4607 |
| CTC Value in % (Minimum) | 45 | 50 | 55 | 60 | 75 | ASTM D3467 |
| Apparent Density in Kg/m3 (Minim.) | 510 | 490 | 480 | 460 | 430 | ASTM D2854 |
| Surface Area | NA | NA | NA | NA | NA | |
| Ball Pan Hardness | 98% Min. | 98% Min. | 98% Min. | 98% Min. | 95% Min. | ASTM D3802 |
| Moisture | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2867 |
| Ash | 3% Max. | 3% Max. | 3% Max. | 3% Max. | 3% Max. | ASTM D2866 |
| PH | 9 – 11 | 9 – 11 | 9 – 11 | 9 – 11 | 9 – 11 | ASTM D3838 |
GAC RAC ECO SORB
| Specification | 6 X 12 (3.35 MM X 1.70 MM) | Method | ||||
|---|---|---|---|---|---|---|
| +6 Mesh (+3.35 mm) | 3% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2862 |
| -12 Mesh (-1.70 mm) | 2% Max. | 2% Max. | 2% Max. | 2% Max. | 2% Max. | ASTM D2862 |
| Iodine Value (Minimum) | 950 | 1000 | 1100 | 1150 | 1300 | ASTM D4607 |
| CTC Value in % (Minimum) | 45 | 50 | 55 | 60 | 75 | ASTM D3467 |
| Apparent Density in Kg/m3 (Minim.) | 530 | 520 | 500 | 480 | 430 | ASTM D2854 |
| Surface Area | NA | NA | NA | NA | NA | |
| Ball Pan Hardness | 98% Min. | 98% Min. | 98% Min. | 98% Min. | 98% Min. | ASTM D3802 |
| Moisture | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2867 |
| Ash | 3% Max. | 3% Max. | 3% Max. | 3% Max. | 3% Max. | ASTM D2866 |
| PH | 9 – 11 | 9 – 11 | 9 – 11 | 9 – 11 | 9 – 11 | ASTM D3838 |
GAC RAC ECO SORB
| Specification | 6 X 16 (3.35 MM X 1.18 MM) | Method | ||||
|---|---|---|---|---|---|---|
| +6 Mesh (+3.35 mm) | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2862 |
| -16 Mesh (-1.18 mm) | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2862 |
| Iodine Value (Minimum) | 950 Min. | 1000 Min. | 1100 Min. | 1150 Min. | 1300 Min. | ASTM D4607 |
| CTC Value in % (Minimum) | 45 | 50 | 55 | 60 | 75 | ASTM D3467 |
| Apparent Density in Kg/m3 (Minim.) | 540 | 520 | 520 | 480 | 430 | ASTM D2854 |
| Surface Area | NA | NA | NA | NA | NA | |
| Ball Pan Hardness | 98% Min. | 98% Min. | 98% Min. | 98% Min. | 95% Min. | ASTM D3802 |
| Moisture | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2867 |
| Ash | 3% Max. | 3% Max. | 3% Max. | 3% Max. | 3% Max. | ASTM D2866 |
| PH | 9 – 11 | 9 – 11 | 9 – 11 | 9 – 11 | 9 – 11 | ASTM D3838 |
GAC RAC ECO SORB
| Specification | 8 X 16 (2.36 MM X 1.18 MM) | Method | ||||
|---|---|---|---|---|---|---|
| +8 Mesh (+2.36 mm) | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2862 |
| -16 Mesh (-1.18 mm) | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2862 |
| Iodine Value (Minimum) | 950 | 1000 | 1100 | 1150 | 1300 | ASTM D4607 |
| CTC Value in % (Minimum) | 45 | 50 | 55 | 60 | 75 | ASTM D3467 |
| Apparent Density in Kg/m3 (Minim.) | 540 | 530 | 510 | 490 | 430 | ASTM D2854 |
| Surface Area | NA | NA | NA | NA | NA | |
| Ball Pan Hardness | 98% Min. | 98% Min. | 98% Min. | 98% Min. | 95% Min. | ASTM D3802 |
| Moisture | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2867 |
| Ash | 3% Max. | 3% Max. | 3% Max. | 3% Max. | 3% Max. | ASTM D2866 |
| PH | 9 – 11 | 9 – 11 | 9 – 11 | 9 – 11 | 9 – 11 | ASTM D3838 |

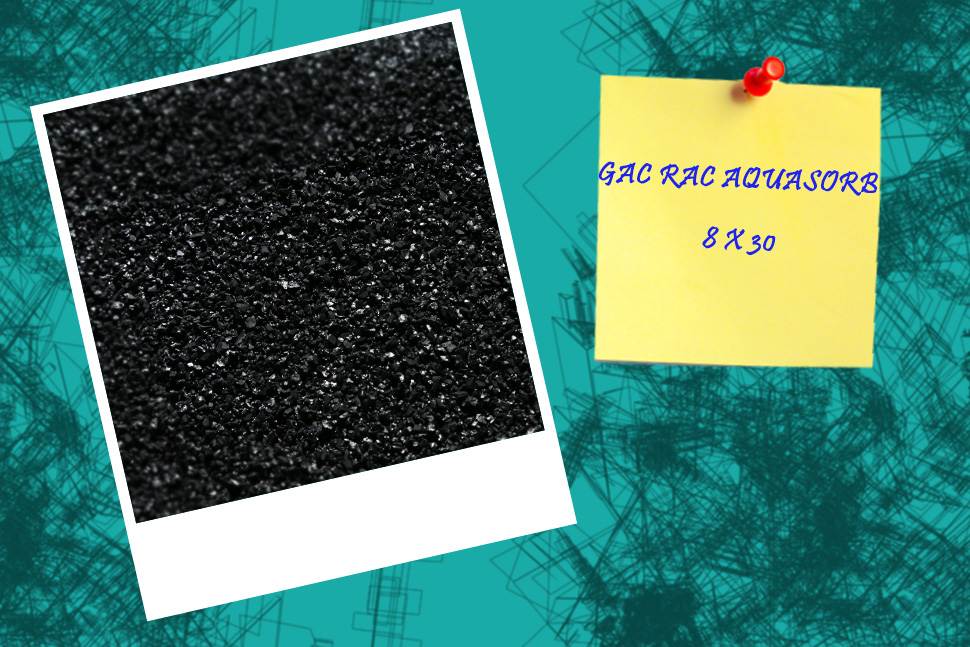

GAC RAC AQUA SORB
| Specification | 8 X 30 (2.36 MM X 0.60 MM) | Method | ||||
|---|---|---|---|---|---|---|
| +8 Mesh (+2.36 mm) | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2862 |
| -30 Mesh (-0.600 mm) | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2862 |
| Iodine Value (Minimum) | 950 | 1000 | 1100 | 1150 | 1300 | ASTM D4607 |
| CTC Value in % (Minimum) | 45 | 50 | 55 | 60 | 75 | ASTM D3467 |
| Apparent Density in Kg/m3 (Minim.) | 540 | 530 | 520 | 500 | 440 | ASTM D2854 |
| Surface Area | NA | NA | NA | NA | NA | |
| Ball Pan Hardness | 98% Min. | 98% Min. | 98% Min. | 98% Min. | 95% Min. | ASTM D3802 |
| Moisture | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2867 |
| Ash | 4% Max. | 4% Max. | 4% Max. | 4% Max. | 4% Max. | ASTM D2866 |
| PH | 9 – 11 | 9 – 11 | 9 – 11 | 9 – 11 | 9 – 11 | ASTM D3838 |
GAC RAC AQUA SORB
| Specification | 12 X 30 (1.70 MM X 0.60 MM) | Method | ||||
|---|---|---|---|---|---|---|
| +12 Mesh (+1.7 mm) | 3% Max. | 3% Max. | 3% Max. | 3% Max. | 3% Max. | ASTM D2862 |
| -30 Mesh (-0.600 mm) | 3% Max. | 3% Max. | 3% Max. | 3% Max. | 3% Max. | ASTM D2862 |
| Iodine Value (Minimum) | 950 | 1000 | 1100 | 1150 | 1300 | ASTM D4607 |
| CTC Value in % (Minimum) | 45 | 50 | 55 | 60 | 75 | ASTM D3467 |
| Apparent Density in Kg/m3 (Minim.) | 540 | 530 | 520 | 500 | 450 | ASTM D2854 |
| Surface Area | NA | NA | NA | NA | NA | |
| Ball Pan Hardness | 98% Min. | 98% Min. | 98% Min. | 98% Min. | 95% Min. | ASTM D3802 |
| Moisture | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2867 |
| Ash | 4% Max. | 4% Max. | 4% Max. | 4% Max. | 4% Max. | ASTM D2866 |
| PH | 9 – 11 | 9 – 11 | 9 – 11 | 9 – 11 | 9 – 11 | ASTM D3838 |
GAC RAC AQUA SORB
| Specification | 12 X 40(1.70 MM X 0.425 MM) | Method | ||||
|---|---|---|---|---|---|---|
| +12 Mesh (+1.70 mm) | 3% Max. | 3% Max. | 3% Max. | 3% Max. | 3% Max. | ASTM D2862 |
| -40 Mesh (-0.425 mm) | 3% Max. | 3% Max. | 3% Max. | 3% Max. | 3% Max. | ASTM D2862 |
| Iodine Value (Minimum) | 950 | 1000 | 1100 | 1150 | 1300 | ASTM D4607 |
| CTC Value in % (Minimum) | 45 | 50 | 55 | 60 | 75 | ASTM D3467 |
| Apparent Density in Kg/m3 (Minim.) | 540 | 530 | 520 | 500 | 450 | ASTM D2854 |
| Surface Area | NA | NA | NA | NA | NA | |
| Ball Pan Hardness | 98% Min. | 98% Min. | 98% Min. | 98% Min. | 95% Min. | ASTM D3802 |
| Moisture | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2867 |
| Ash | 4% Max. | 4% Max. | 4% Max. | 4% Max. | 4% Max. | ASTM D2866 |
| PH | 9 – 11 | 9 – 11 | 9 – 11 | 9 – 11 | 9 – 11 | ASTM D3838 |
PAC RAC AQUA SORB
| Specification | 20 X 50 (0.85 MM X 0.30 MM) | Method | ||||
|---|---|---|---|---|---|---|
| +20 Mesh (+841 Micron) | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2862 |
| -50 Mesh (-297 Micron) | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2862 |
| Iodine Value (Minimum) | 950 Min. | 1000 Min. | 1100 Min. | 1150 Min. | 1300 Min. | ASTM D4607 |
| CTC Value in % (Minimum) | 45 | 50 | 55 | 60 | 75 | ASTM D3467 |
| Apparent Density in Kg/m3 (Minim.) | 540 | 530 | 520 | 480 | 450 | ASTM D2854 |
| Surface Area | NA | NA | NA | NA | NA | |
| Ball Pan Hardness | 98% Min. | 98% Min. | 98% Min. | 98% Min. | 95% Min. | ASTM D3802 |
| Moisture | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2867 |
| Ash | 4% Max. | 4% Max. | 4% Max. | 4% Max. | 4% Max. | ASTM D2866 |
| PH | 9 – 11 | 9 – 11 | 9 – 11 | 9 – 11 | 9 – 11 | ASTM D3838 |
PAC RAC AQUA SORB
| Specification | 30 X 70 (0.60 MM X 0.212 MM) | Method | ||||
|---|---|---|---|---|---|---|
| +30 Mesh (+500 Micron) | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2862 |
| -70 Mesh (-210 Micron) | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2862 |
| Iodine Value (Minimum) | 950 Min. | 1000 Min. | 1100 Min. | 1150 Min. | 1300 Min. | ASTM D4607 |
| CTC Value in % (Minimum) | 45 | 50 | 55 | 60 | 75 | ASTM D3467 |
| Apparent Density in Kg/m3 (Minim.) | 540 | 520 | 500 | 480 | 430 | ASTM D2854 |
| Surface Area | NA | NA | NA | NA | NA | |
| Ball Pan Hardness | 98% Min. | 98% Min. | 98% Min. | 98% Min. | 95% Min. | ASTM D3802 |
| Moisture | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2867 |
| Ash | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2866 |
| PH | 9 – 11 | 9 – 11 | 9 – 11 | 9 – 11 | 9 – 11 | ASTM D3838 |
PAC RAC AQUA SORB
| Specification | 80 X 325 (0.177 MM X 0.044 MM) | Method | ||||
|---|---|---|---|---|---|---|
| +80 Mesh (+177 micron) | 25% Max. | 25% Max. | 25% Max. | 25% Max. | 25% Max. | ASTM D2862 |
| -325 Mesh (-44 micron) | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2862 |
| Iodine Value (Minimum) | 950 Min. | 1000 Min. | 1100 Min. | 1150 Min. | 1300 Min. | ASTM D4607 |
| CTC Value in % (Minimum) | 45 | 50 | 55 | 60 | 75 | ASTM D3467 |
| Apparent Density in Kg/m3 (Minim.) | 480 | 460 | 430 | 410 | 380 | ASTM D2854 |
| Surface Area | NA | NA | NA | NA | NA | |
| Ball Pan Hardness | NA | NA | NA | NA | NA | ASTM D3802 |
| Moisture | 7% Max. | 7% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2867 |
| Ash | 7% Max. | 7% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2866 |
| PH | 9 – 11 | 9 – 11 | 9 – 11 | 9 – 11 | 9 – 11 | ASTM D3838 |
